AiM MXS 1.3/4 Strada

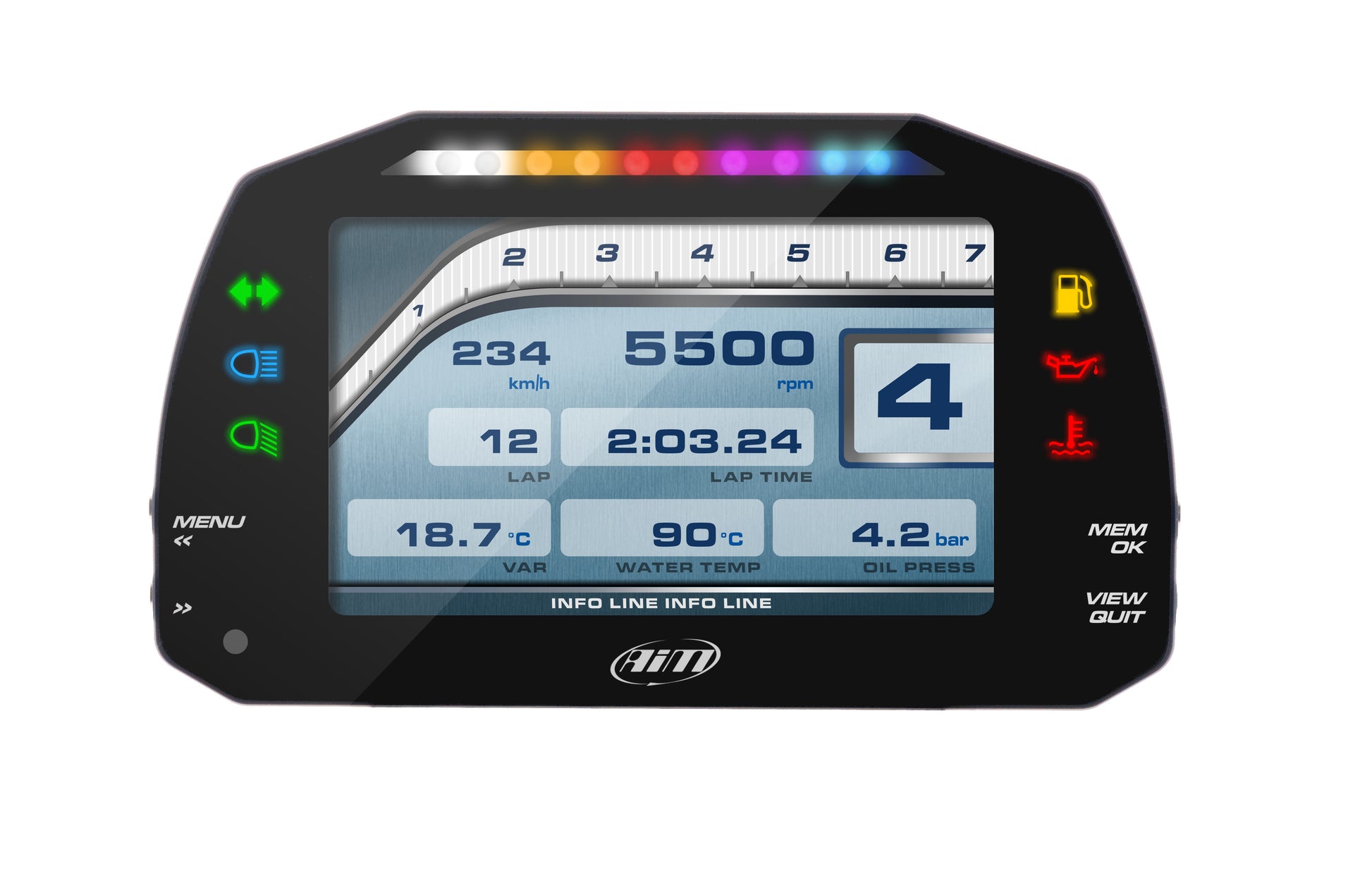

AiM MXS is a dash, a 5 " screen that displays data from:

• ECU : Thanks to its CAN connection and the diversity of protocols in the AiM Race Studio 3 software database.
• GPS09c : Provides speed, position and time information, with 1/100 sec accuracy on lap times, thanks to the powerful 25 Hz GPS module included in the kit.
• Analog/digital inputs : With 8 configurable channels (0-5V, 0-12V) with a maximum frequency of 500 Hz, plus 4 analog channels (0-5V).
• Accelerometer : It has an internal accelerometer and a gyroscope that measure at 100 Hz.
• Second CAN : It has the possibility of collecting information from a second CAN line.

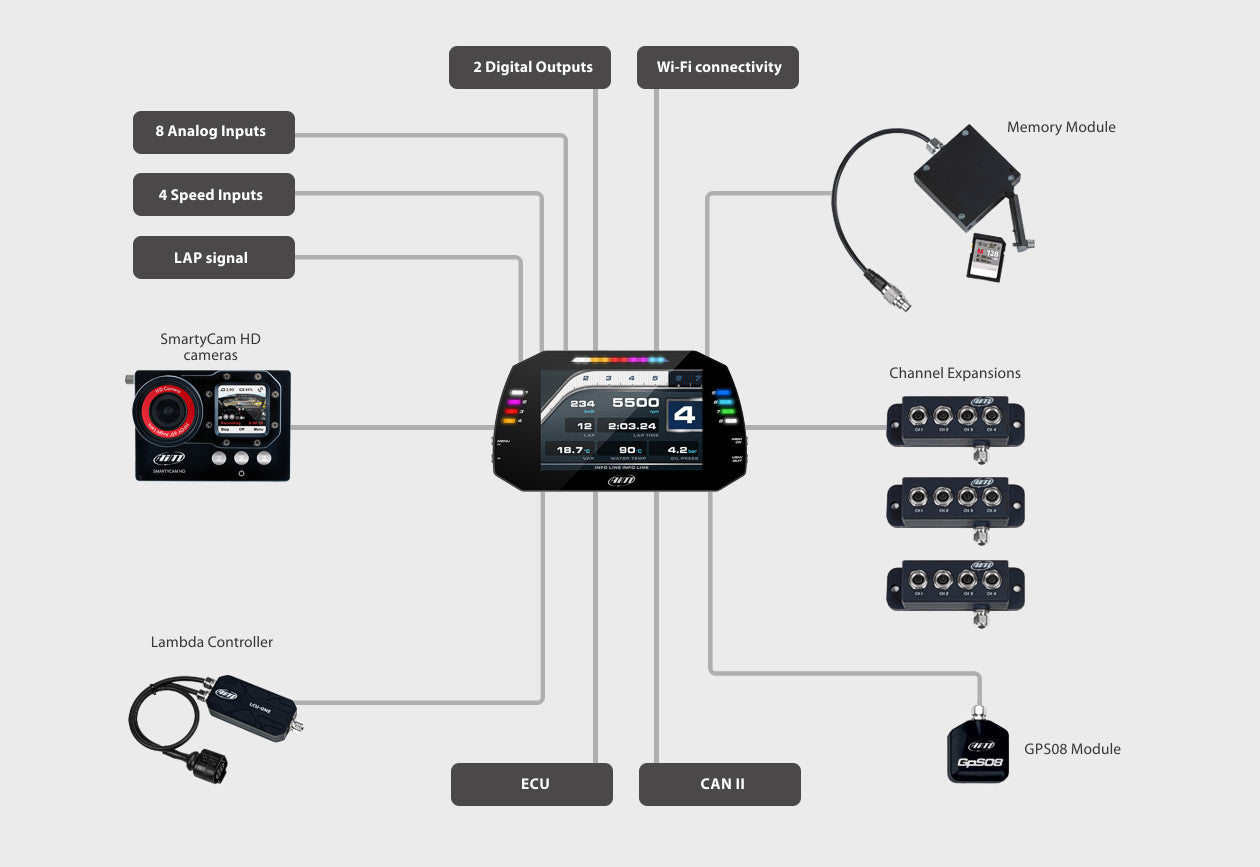

The MXS can connect a wide variety of expansions such as Channel Expansion, TC Hub and LCU-One CAN or SmartyCam 3, to get the most out of the system.

Up to two optional, additional rear cameras can be connected to the dedicated input to display a reverse mirror image directly on the recorder screen.
